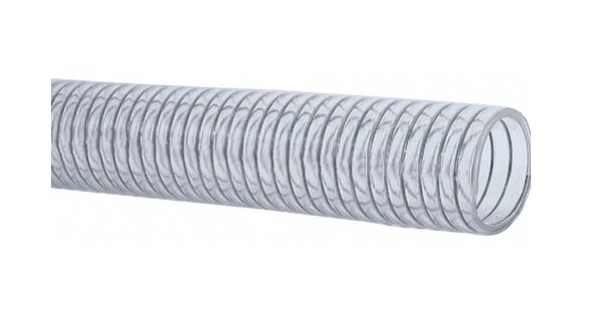

PVC ZUIG/PERSSLANG STALEN SPIRAAL

PVC slang met stalen spiraal
Norm: REG(EU) 10/2011 Klasse A,B,C,D1
Temp: -10°C + 60°C

Transparante gladde PVC slang, ftalaat vrij
Versterking: stalen spiraal
Dekking: transparant PVC - meest chemicaliën en weerbestendig

string(0) ""
string(0) ""

Uitvoeringen:

binnen-diameter wanddikte werkdruk vacuum buigradius rol-lengte
10mm 3mm 7 bar 0,8 bar 20mm 60m Prijs aanvragenarray(6) { ["binnen-diameter"]=> string(4) "10mm" ["wanddikte"]=> string(3) "3mm" ["werkdruk"]=> string(5) "7 bar" ["vacuum"]=> string(7) "0,8 bar" ["buigradius"]=> string(4) "20mm" ["rol-lengte"]=> string(3) "60m" }
12mm 3mm 7 bar 0,8 bar 25mm 60m Prijs aanvragenarray(6) { ["binnen-diameter"]=> string(4) "12mm" ["wanddikte"]=> string(3) "3mm" ["werkdruk"]=> string(5) "7 bar" ["vacuum"]=> string(7) "0,8 bar" ["buigradius"]=> string(4) "25mm" ["rol-lengte"]=> string(3) "60m" }
14mm 3,2mm 6 bar 0,8 bar 30mm 60m Prijs aanvragenarray(6) { ["binnen-diameter"]=> string(4) "14mm" ["wanddikte"]=> string(5) "3,2mm" ["werkdruk"]=> string(5) "6 bar" ["vacuum"]=> string(7) "0,8 bar" ["buigradius"]=> string(4) "30mm" ["rol-lengte"]=> string(3) "60m" }
16mm 3,2mm 6 bar 0,8 bar 35mm 60m Prijs aanvragenarray(6) { ["binnen-diameter"]=> string(4) "16mm" ["wanddikte"]=> string(5) "3,2mm" ["werkdruk"]=> string(5) "6 bar" ["vacuum"]=> string(7) "0,8 bar" ["buigradius"]=> string(4) "35mm" ["rol-lengte"]=> string(3) "60m" }
18mm 3,2mm 6 bar 0,8 bar 40mm 60m Prijs aanvragenarray(6) { ["binnen-diameter"]=> string(4) "18mm" ["wanddikte"]=> string(5) "3,2mm" ["werkdruk"]=> string(5) "6 bar" ["vacuum"]=> string(7) "0,8 bar" ["buigradius"]=> string(4) "40mm" ["rol-lengte"]=> string(3) "60m" }
20mm 3,5mm 5 bar 0,8 bar 50mm 60m Prijs aanvragenarray(6) { ["binnen-diameter"]=> string(4) "20mm" ["wanddikte"]=> string(5) "3,5mm" ["werkdruk"]=> string(5) "5 bar" ["vacuum"]=> string(7) "0,8 bar" ["buigradius"]=> string(4) "50mm" ["rol-lengte"]=> string(3) "60m" }
22mm 3,5mm 5 bar 0,8 bar 55mm 60m Prijs aanvragenarray(6) { ["binnen-diameter"]=> string(4) "22mm" ["wanddikte"]=> string(5) "3,5mm" ["werkdruk"]=> string(5) "5 bar" ["vacuum"]=> string(7) "0,8 bar" ["buigradius"]=> string(4) "55mm" ["rol-lengte"]=> string(3) "60m" }
25mm 4mm 5 bar 0,8 bar 75mm 60m Prijs aanvragenarray(6) { ["binnen-diameter"]=> string(4) "25mm" ["wanddikte"]=> string(3) "4mm" ["werkdruk"]=> string(5) "5 bar" ["vacuum"]=> string(7) "0,8 bar" ["buigradius"]=> string(4) "75mm" ["rol-lengte"]=> string(3) "60m" }
30mm 4,2mm 4,5 bar 0,8 bar 90mm 60m Prijs aanvragenarray(6) { ["binnen-diameter"]=> string(4) "30mm" ["wanddikte"]=> string(5) "4,2mm" ["werkdruk"]=> string(7) "4,5 bar" ["vacuum"]=> string(7) "0,8 bar" ["buigradius"]=> string(4) "90mm" ["rol-lengte"]=> string(3) "60m" }
32mm 4,2mm 4,5 bar 0,8 bar 95mm 60m Prijs aanvragenarray(6) { ["binnen-diameter"]=> string(4) "32mm" ["wanddikte"]=> string(5) "4,2mm" ["werkdruk"]=> string(7) "4,5 bar" ["vacuum"]=> string(7) "0,8 bar" ["buigradius"]=> string(4) "95mm" ["rol-lengte"]=> string(3) "60m" }
35mm 4,5mm 4 bar 0,8 bar 105mm 60m Prijs aanvragenarray(6) { ["binnen-diameter"]=> string(4) "35mm" ["wanddikte"]=> string(5) "4,5mm" ["werkdruk"]=> string(5) "4 bar" ["vacuum"]=> string(7) "0,8 bar" ["buigradius"]=> string(5) "105mm" ["rol-lengte"]=> string(3) "60m" }
38mm 4,5mm 4 bar 0,8 bar 115mm 30m Prijs aanvragenarray(6) { ["binnen-diameter"]=> string(4) "38mm" ["wanddikte"]=> string(5) "4,5mm" ["werkdruk"]=> string(5) "4 bar" ["vacuum"]=> string(7) "0,8 bar" ["buigradius"]=> string(5) "115mm" ["rol-lengte"]=> string(3) "30m" }
40mm 4,5mm 3 bar 0,8 bar 120mm 30m Prijs aanvragenarray(6) { ["binnen-diameter"]=> string(4) "40mm" ["wanddikte"]=> string(5) "4,5mm" ["werkdruk"]=> string(5) "3 bar" ["vacuum"]=> string(7) "0,8 bar" ["buigradius"]=> string(5) "120mm" ["rol-lengte"]=> string(3) "30m" }
45mm 5mm 3 bar 0,8 bar 135mm 30m Prijs aanvragenarray(6) { ["binnen-diameter"]=> string(4) "45mm" ["wanddikte"]=> string(3) "5mm" ["werkdruk"]=> string(5) "3 bar" ["vacuum"]=> string(7) "0,8 bar" ["buigradius"]=> string(5) "135mm" ["rol-lengte"]=> string(3) "30m" }
51mm 5mm 3 bar 0,8 bar 150mm 30m Prijs aanvragenarray(6) { ["binnen-diameter"]=> string(4) "51mm" ["wanddikte"]=> string(3) "5mm" ["werkdruk"]=> string(5) "3 bar" ["vacuum"]=> string(7) "0,8 bar" ["buigradius"]=> string(5) "150mm" ["rol-lengte"]=> string(3) "30m" }
60mm 6mm 2,5 bar 0,7 bar 180mm 30m Prijs aanvragenarray(6) { ["binnen-diameter"]=> string(4) "60mm" ["wanddikte"]=> string(3) "6mm" ["werkdruk"]=> string(7) "2,5 bar" ["vacuum"]=> string(7) "0,7 bar" ["buigradius"]=> string(5) "180mm" ["rol-lengte"]=> string(3) "30m" }
63mm 6mm 2,5 bar 0,7 bar 190mm 30m Prijs aanvragenarray(6) { ["binnen-diameter"]=> string(4) "63mm" ["wanddikte"]=> string(3) "6mm" ["werkdruk"]=> string(7) "2,5 bar" ["vacuum"]=> string(7) "0,7 bar" ["buigradius"]=> string(5) "190mm" ["rol-lengte"]=> string(3) "30m" }
70mm 6,5mm 2 bar 0,7 bar 210mm 30m Prijs aanvragenarray(6) { ["binnen-diameter"]=> string(4) "70mm" ["wanddikte"]=> string(5) "6,5mm" ["werkdruk"]=> string(5) "2 bar" ["vacuum"]=> string(7) "0,7 bar" ["buigradius"]=> string(5) "210mm" ["rol-lengte"]=> string(3) "30m" }
76mm 7mm 2 bar 0,7 bar 225mm 30m Prijs aanvragenarray(6) { ["binnen-diameter"]=> string(4) "76mm" ["wanddikte"]=> string(3) "7mm" ["werkdruk"]=> string(5) "2 bar" ["vacuum"]=> string(7) "0,7 bar" ["buigradius"]=> string(5) "225mm" ["rol-lengte"]=> string(3) "30m" }
80mm 7mm 2 bar 0,7 bar 240mm 30m Prijs aanvragenarray(6) { ["binnen-diameter"]=> string(4) "80mm" ["wanddikte"]=> string(3) "7mm" ["werkdruk"]=> string(5) "2 bar" ["vacuum"]=> string(7) "0,7 bar" ["buigradius"]=> string(5) "240mm" ["rol-lengte"]=> string(3) "30m" }
90mm 7mm 2 bar 0,6 bar 270mm 30m Prijs aanvragenarray(6) { ["binnen-diameter"]=> string(4) "90mm" ["wanddikte"]=> string(3) "7mm" ["werkdruk"]=> string(5) "2 bar" ["vacuum"]=> string(7) "0,6 bar" ["buigradius"]=> string(5) "270mm" ["rol-lengte"]=> string(3) "30m" }
102mm 7mm 2 bar 0,6 bar 300mm 30m Prijs aanvragenarray(6) { ["binnen-diameter"]=> string(5) "102mm" ["wanddikte"]=> string(3) "7mm" ["werkdruk"]=> string(5) "2 bar" ["vacuum"]=> string(7) "0,6 bar" ["buigradius"]=> string(5) "300mm" ["rol-lengte"]=> string(3) "30m" }
